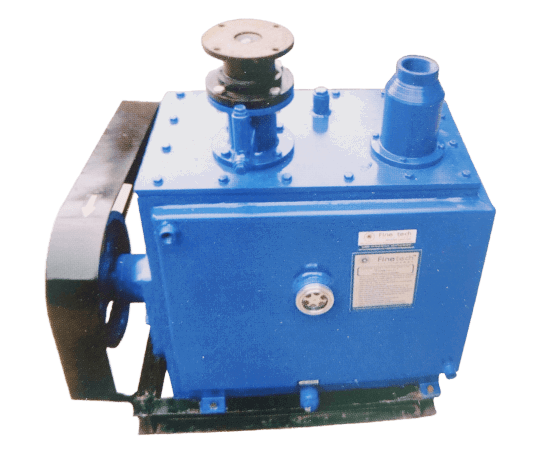

OIL SEAL VACUUM PUMP

OIL SEAL SINGLE & TWO STAGE VACUUM PUMP

DESCRIPTIONS :-

Oil seal vacuum pumps are oil-immersed, rotary vane type pumps. The rotor, with two spring loaded vanes, is mounted eccentric in the stator body. As the rotor, rotates the vanes sweep the crescent shapes, air space twice in each revolution. There is in-built non-return valve which prevents back flow parts are precisely machined, ground and assembled with close tolerances.

With our precisely designed pumps, maximum vacuum can be achieved in a very short period. Thus, the rise in the temperature of the unit is successfully checked and the wear and tear of its components are also reduced. Hence, our oil seal vacuum pump has emerged as a long lasting, noiseless and trouble-free performer for years.

TECHNICAL SPECIFICATIONS:-

•    Max. Capacity : 3.06 m3/hr.to 1204 m3/hr
•    Max. Vacuum : Single Stage : 0.05 mm of Hg.
•    Max. Vacuum : Two Stage : 0.005 mm of Hg.
•    Motor : 0.25 HP to 25 HP, 1450 RPM
•    Pump Speed : 500 RPM

APPLICATIONS:

•    Laboratory Application of chemical Plant.
•    R & D Centre Vacuum Impregnaton, Packing
•    Vacuum Drying, Forming Coating
•    Lamp Industries, Leak Detection,
•    Cryogenics, Distillation.Re-refining of oil

FEATURES:

•    Robust Construction
•    Compact, well-designed and low weight model
•    Maximum Efficiency
•    Trouble-free operation
•    R&Easy and fast arrangement to change oil
•    Thoroughly tested for seamless operation
•    Easily handle dust laded gases
•    Built-in anti suck facility to prevent back of oil
